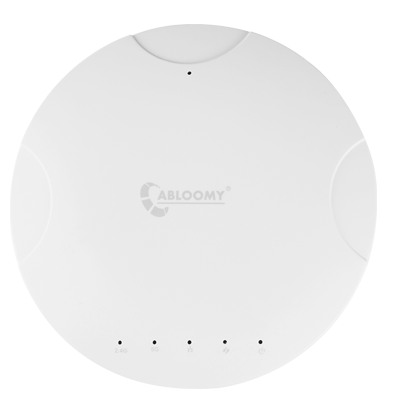

VAP5201 300M Ceiling-type AP
The ABLOOMY VAP5201 is a 2.4GHz indoor AP with high performance and reliability, which is designed for the deployment in hospitality and enterprises. While it supports PoE, MiMo technology, and 802.11b/g/n modes, the single-band wireless AP provides 300Mbps throughput. Apart from this, its elegant appearance and stable performance makes it best for the ceiling mounting.
Highlights
Multiple access modes
Support multiple modes including PPPoE, DHCP and Static IP which satisfies all bandwidth providers.
Zero configuration & easy deployments
The accessed AP needs no configuration, as it can automatically register and obtain wireless rules from CSP/CAM when it routes CSP/CAM. No manual configuration simplifies deployment and maintenance.
Forward modes
Support local forward and centralized forward. Users can choose data forward mode based on network deployment
Virtual sharing
The multiple BSSID release ensures the isolation between business network and guest network. The network shoulders various services and applications, saving the network construction investment.
Local content storage
The local storage of AD, APP and other application realizes the resource sharing, improving user experience and saving the outlet bandwidth.
Various authentications
Abundant user authentications containing 802.1x, Portal, SMS, WeChat scan QR code, senseless authentication, meet mounts of application requirements in hotels, schools, shopping malls, enterprises, finance and any other fields.
RF optimization
The RF optimization from multiple dimensions limits the user connections and controls the link of AP with weak signal. The VAP1051A can automatically detect signal quality around and do the channel adjustment.
Precise marketing
The ABLOOMY cloud service platform provides custom service. Based on the users attributes such as physical locations, time and access roles, users can get different marketing AD at different places different time.
Beacon
Support beacon that detects the neighbor AP’s transferring information such as RSSI, channel, relative BSSID etc. for indoor location, heat map exhibition and other applications.
Hardware Compare
| VAP | VAP5201A | VAP7313A | VAP7300 |
| Appearance |  |  |  |
| Weight | 380g | 380g | 380g |
| Dimension（L*W*D） | 161.5mm*41.5mm | 161.5mm*41.5mm | 161.5mm*41.5mm |
| Ratio | 2.4G | 2.4G | 2.4G |
| Standards | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Rate | 300Mbps | 300Mbps | 300Mbps |
| MIMO | 2x2:2 | 2x2:2 | 2x2:2 |
| Storage | — | — | — |
| POE | 802.3af | 802.3af | 802.3af |
| POE | 48VDC | 48VDC | 48VDC |
| Antenna Gain | 5dbi | 5dbi | 5dbi |
| Antenna Direction | Omni-direction | Omni-direction | Omni-direction |
| Power | 48VDC | 48VDC | 48VDC |
| Interface | 1*10/1000 RJ- 45 port | 1*10/100/1000RJ-45 WAN port | 1*10/100/1000RJ-45 WAN port |
| Consumption | <12W | <12W | 15.6W |
| LED | 4*LED | 5*LED | 5*LED |
| Reset | Support | Support | Support |
Specifications
Software | |
RF | Channel settings: Auto/1~13 |
AP access | Broadcast discovery |
Security | Preshare key encryption |
Forward | Local forward |
Access control | IP-based filtering |
Statistics analysis | Statistics of access history |
Network protocol | PPPoE, static IP, DHCP |
Wireless optimization | Avoid low-speed terminal accessing |
Configuration management | WEB-based management port |
